Henning Knoepfle

Forthing: T5 EVO and Yacht

Company
Dongfeng Liuzhou
Years
2019 to 2021
Role
Design Director
Team
Twelve: six designers, four Alias modelers, two color and trim designers
Forthing Yacht concept, 2021
Yacht concept, Shanghai Auto Show 2021.

T5 EVO

The T5 EVO is the SUV that relaunched Forthing with a new badge. Starting from an existing theme, I led major design work to adjust the stance and clean up the exterior and interior, with a clear focus on sculpted, muscular surfaces and distinct lines. The front was a particular challenge: it had to look dynamic and stable at the same time. We paid close attention to the lamp graphics and the grille details. After the interior design freeze we focused on color and trim and on quality improvements. Sales began in March 2021.

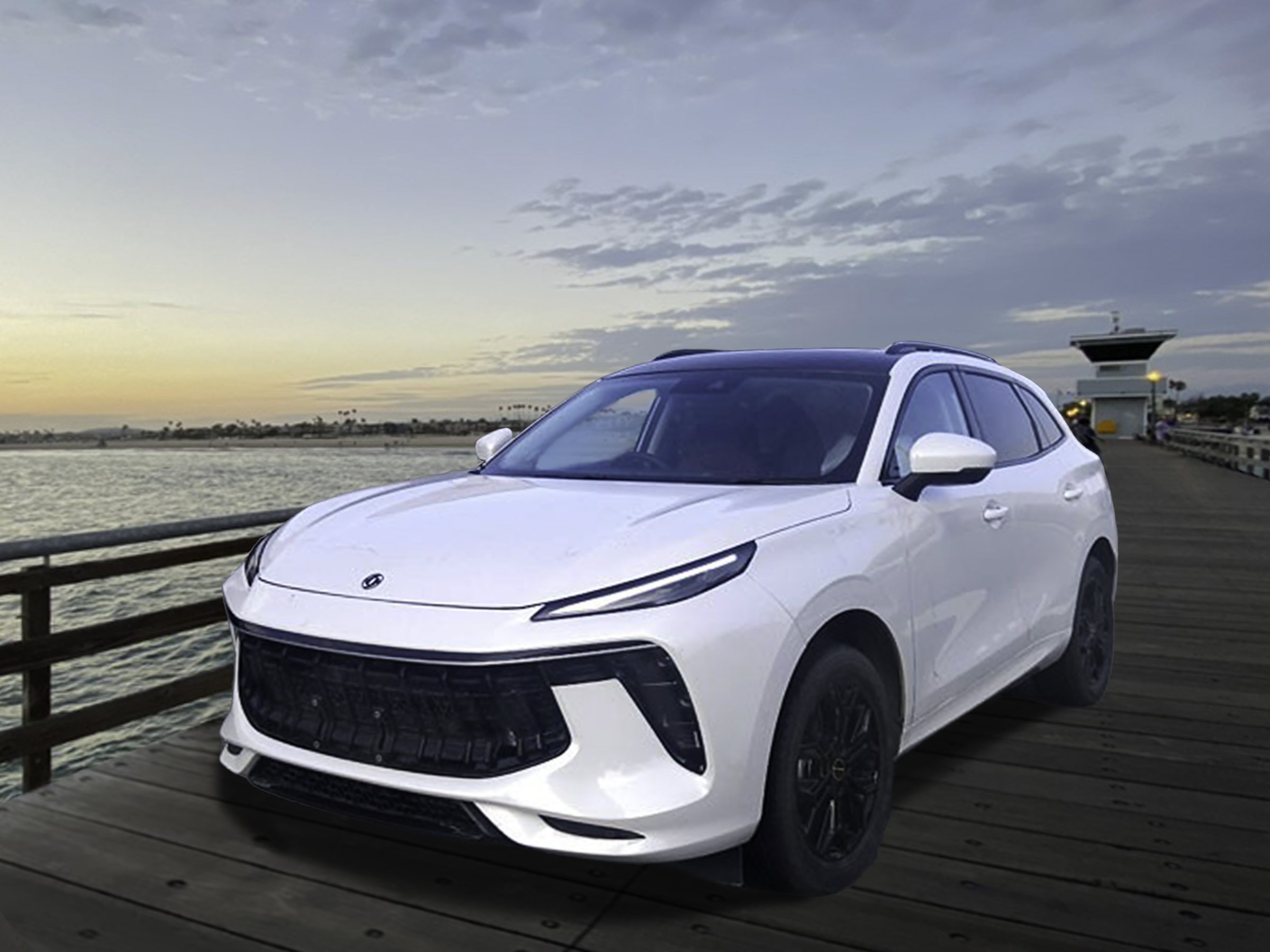

Forthing T5 EVO, white

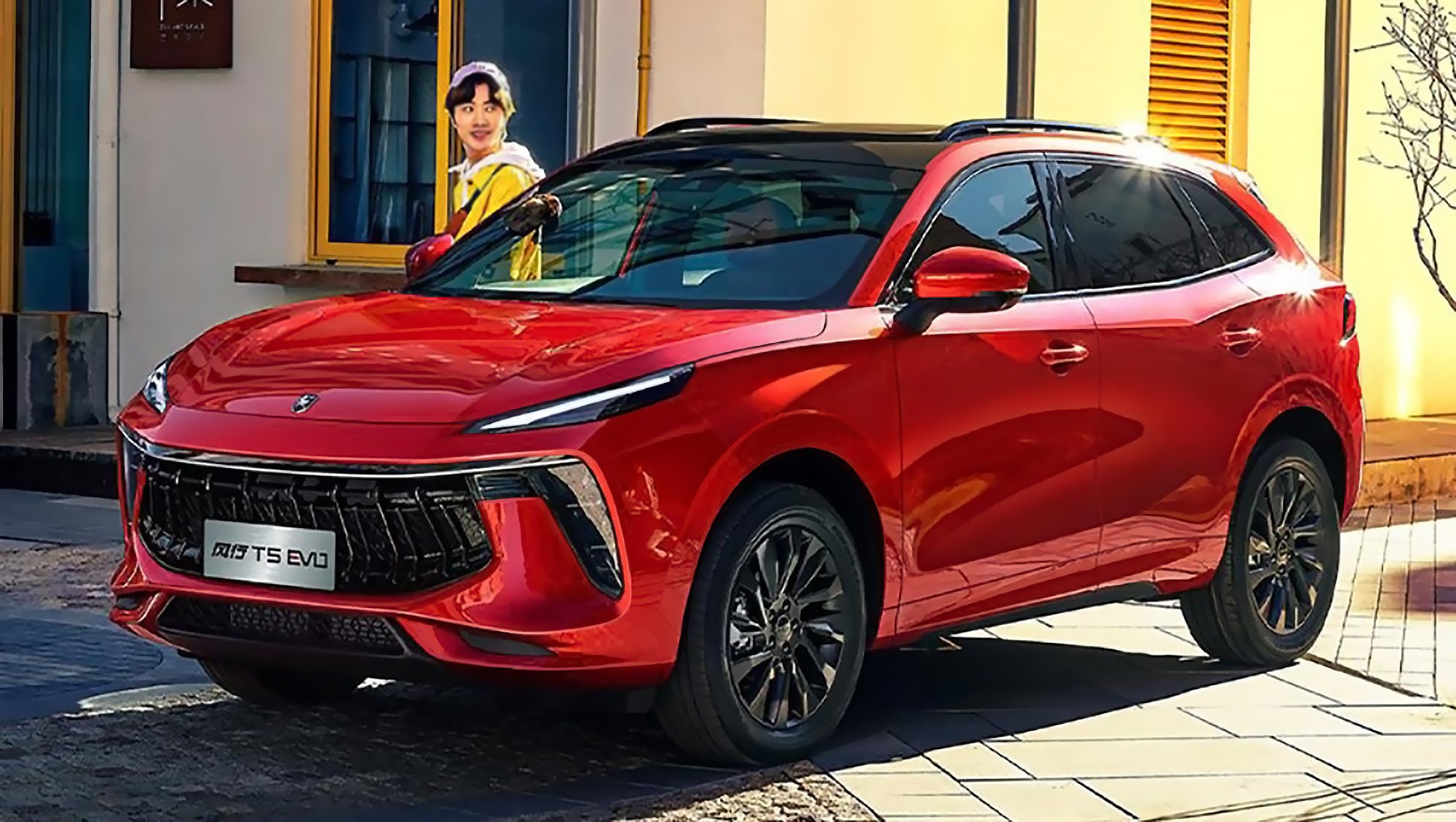

Forthing T5 EVO, red

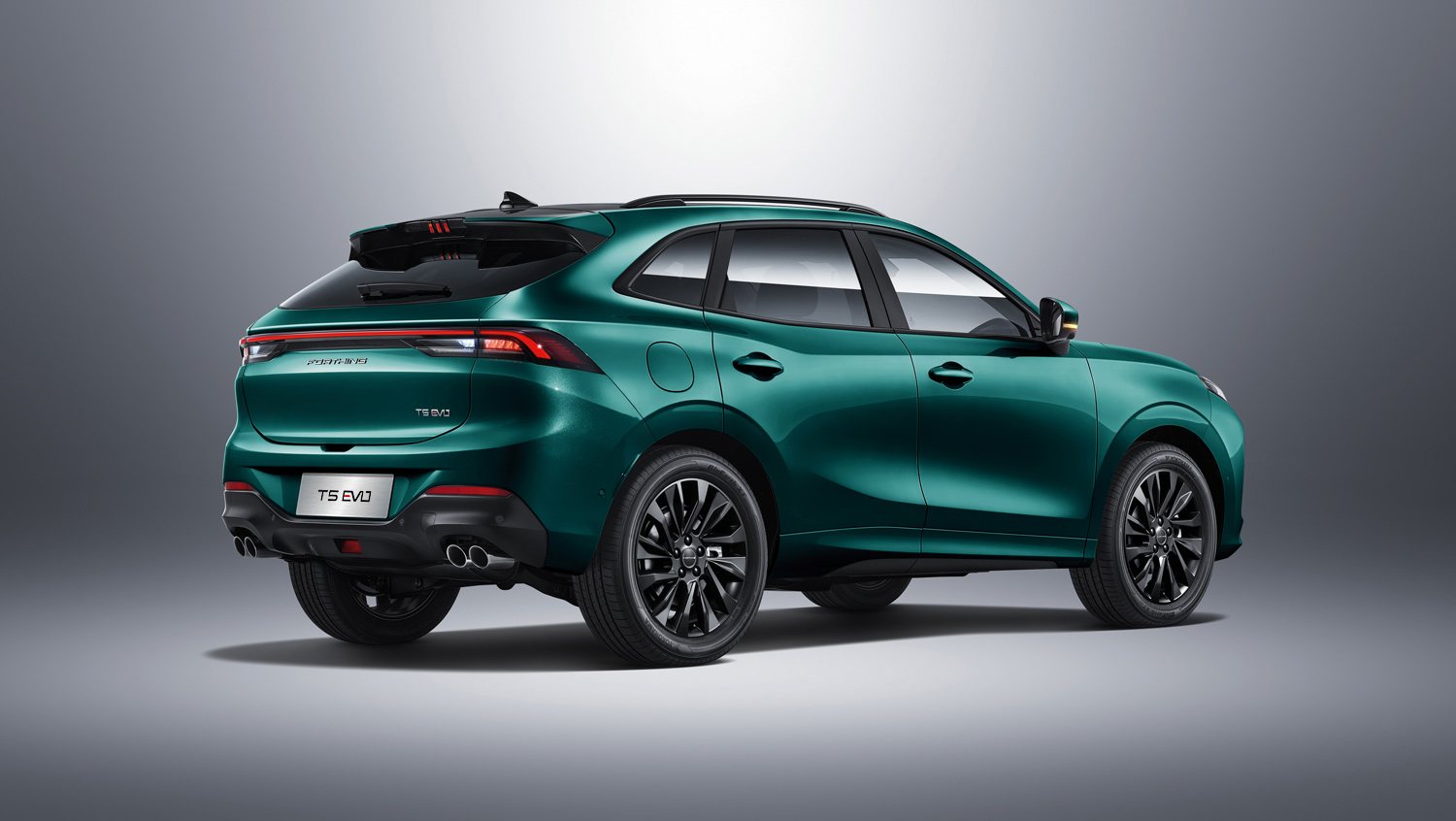

Forthing T5 EVO, green
T5 EVO, production car.
Forthing T5 EVO film
T5 EVO film, with an interview. There is also an interview for Forthing Cambodia.

T5 EVO Tarmac

For the 2021 Shanghai Auto Show we built a show car on the T5 EVO. I defined the concept and led its execution.

T5 EVO Tarmac show car, front three-quarter
Henning Knoepfle with the T5 EVO Tarmac at the show

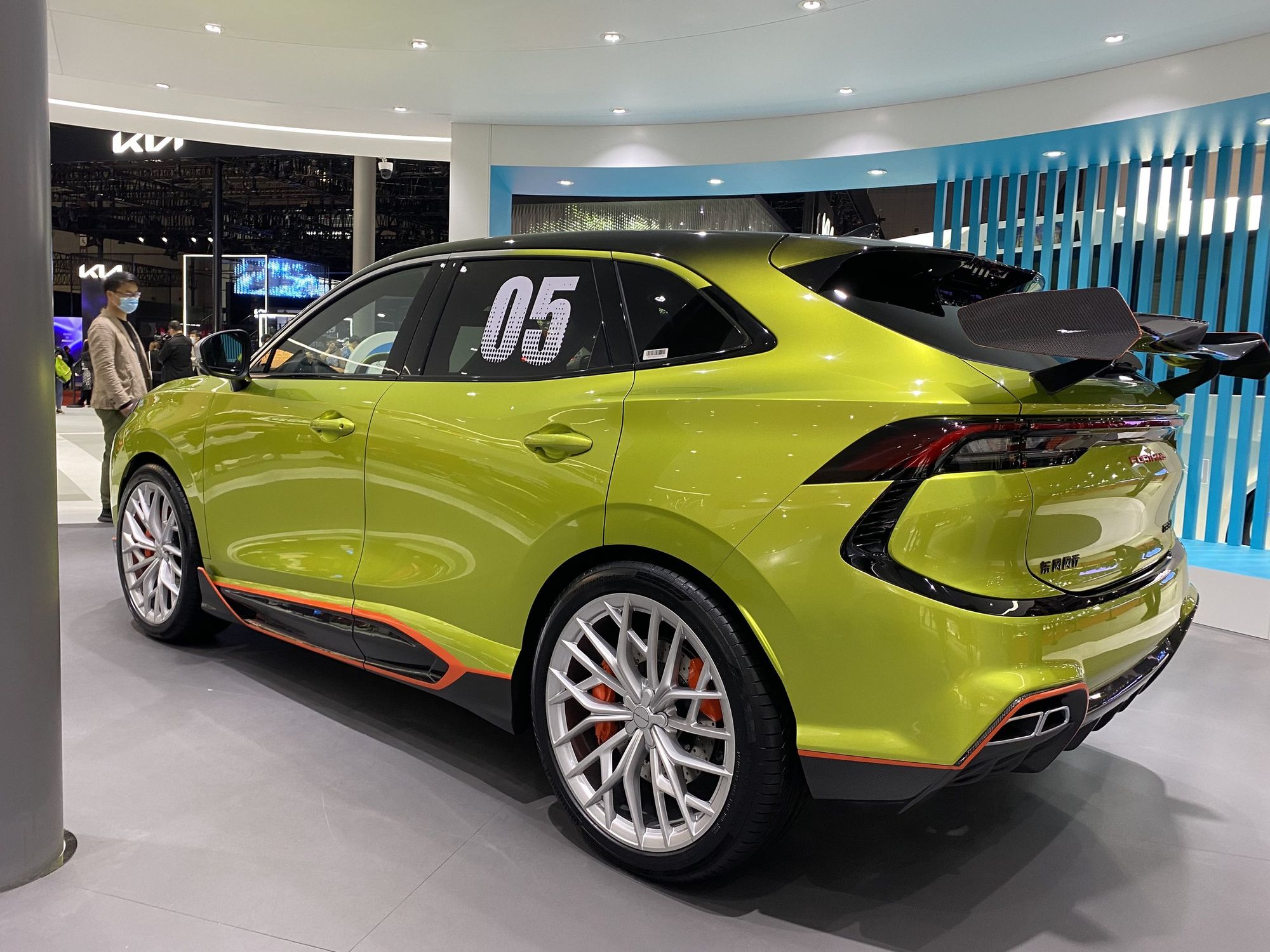

T5 EVO Tarmac show car, rear three-quarter
T5 EVO Tarmac at the Shanghai Auto Show, 2021.

The task

After the T5 EVO came the MPV line. It had to carry the same language and appeal to younger families who did not want a van.

The idea

Two images guided the work: the single stroke of a calligraphy brush and the tension of a drawn bow. The brush stroke became the front graphic, which spreads outward and ends in a splash at the lamp. The bow became the body side, which tightens toward the rear.

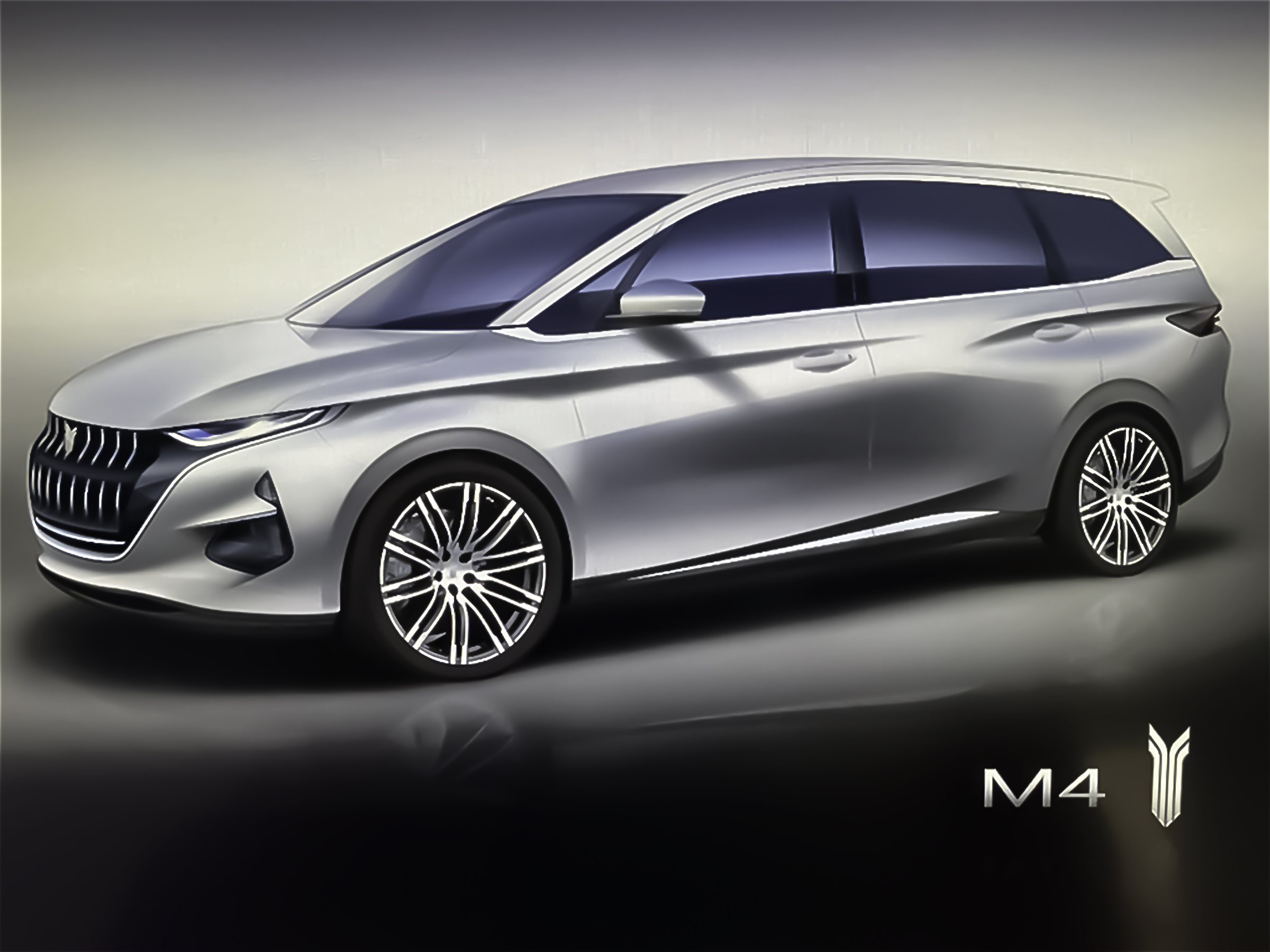

Rendering of the main theme
Brush strokes on paper panels

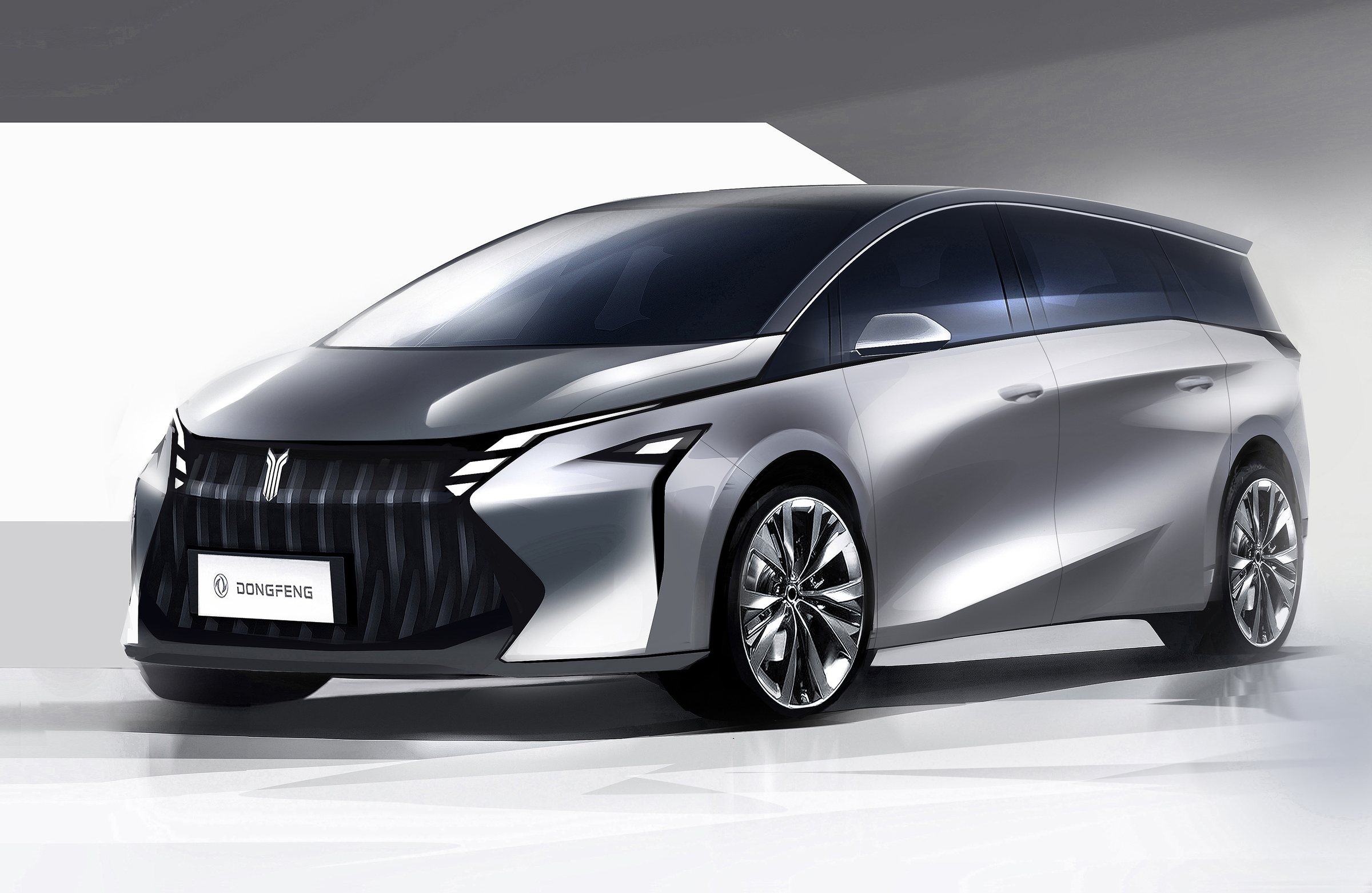

Front theme sketch

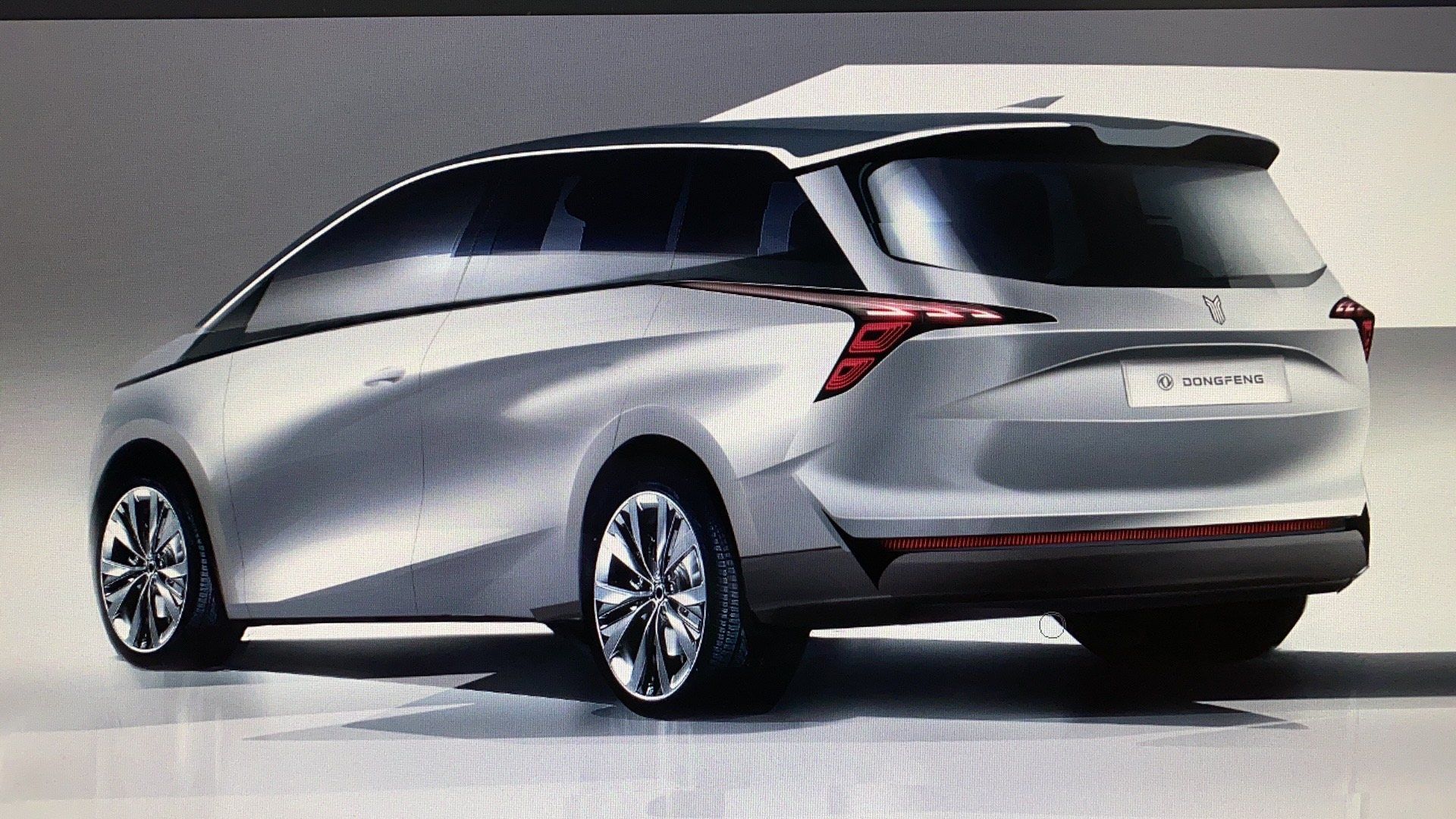

Rear view sketch
The main theme, with the brush strokes on paper and the front and rear sketches.

The work

We did all of it in the Liuzhou studio, from sketch and CAD to full-size clay and A-class surfaces. We taped and re-cut the lines on the clay until each stroke held its tension and read as one continuous line from every angle, without a wobble.

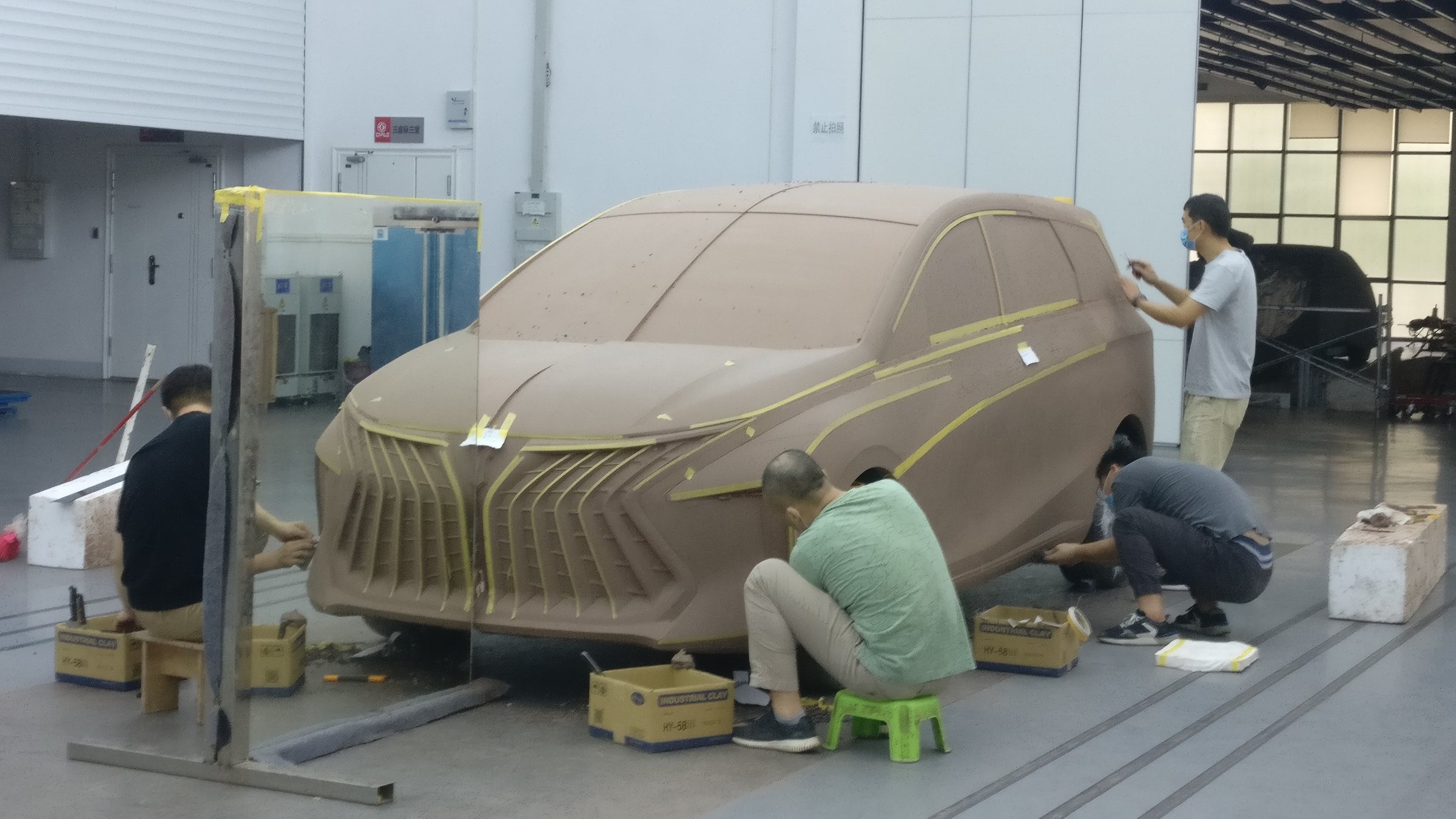

Team taping the full-size clay

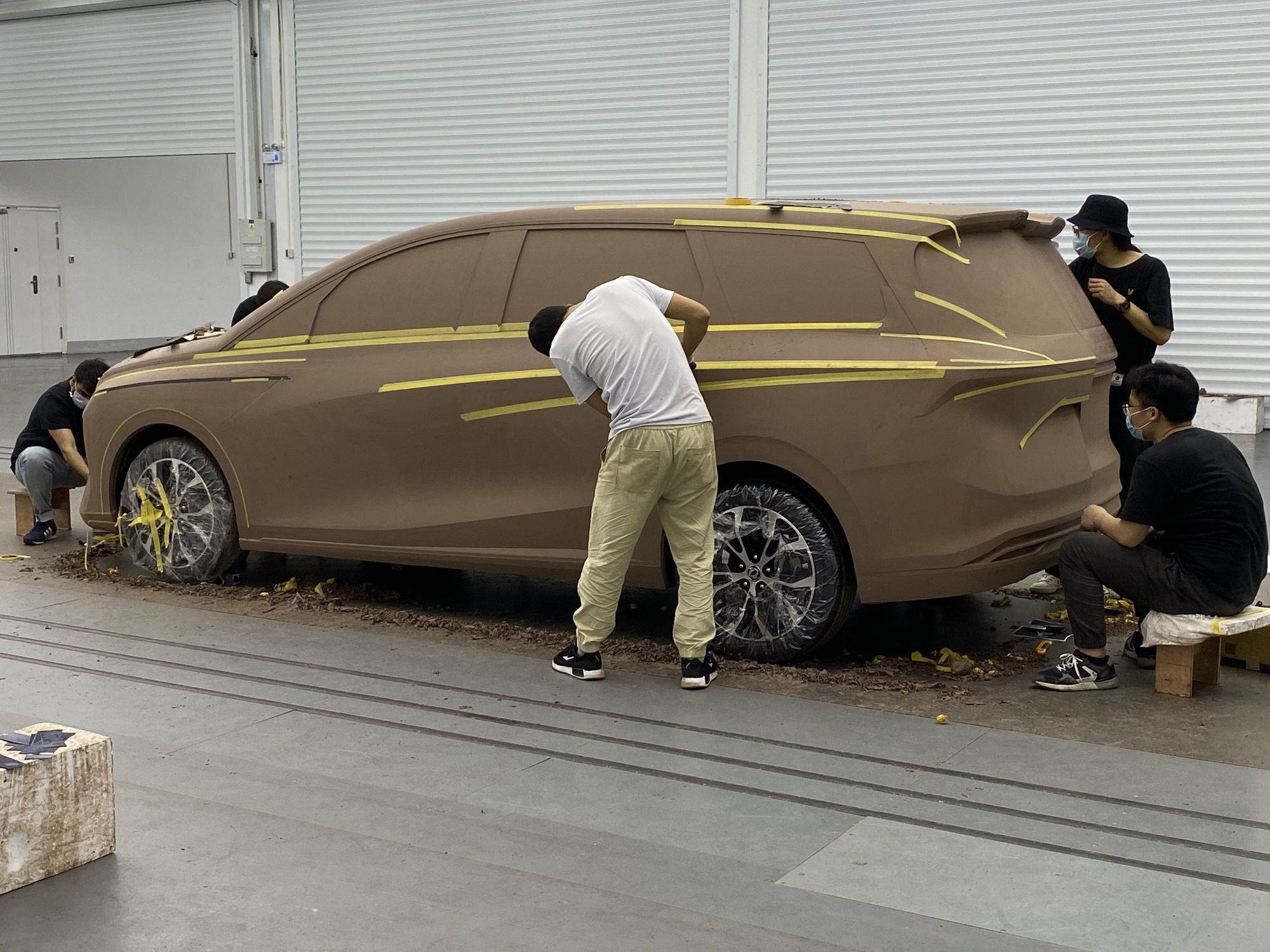

Team working on the clay body side
Tape lines on the clay grille

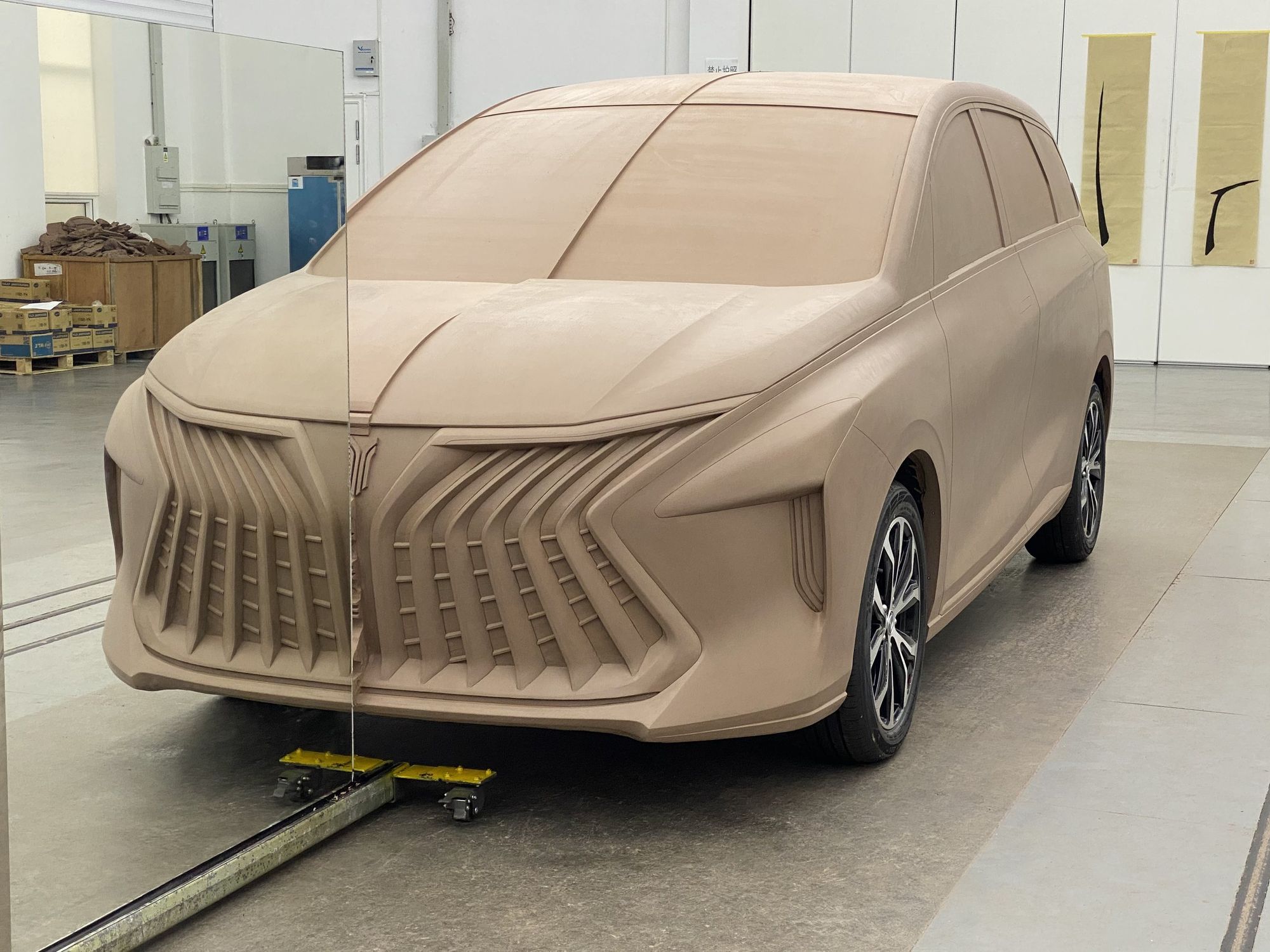

Full-size clay, front

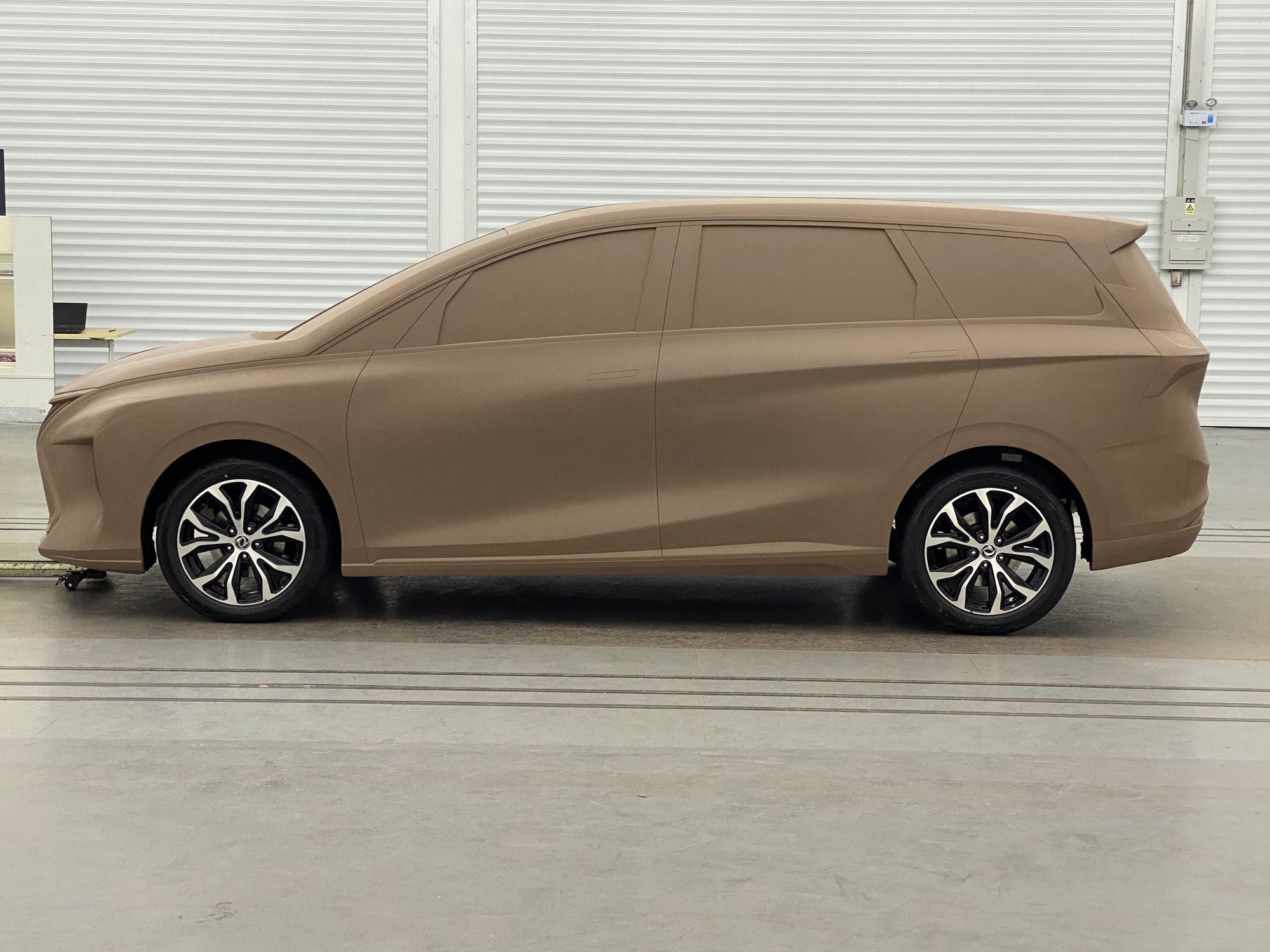

Full-size clay, side
Full-size clay in the Liuzhou studio.

The decision

Two proposals went to the GW1 decision event, where the program team and executives voted. The main theme won all three views: front, side and rear.

Clay model with lamps fitted
The chosen theme, with lamps fitted.

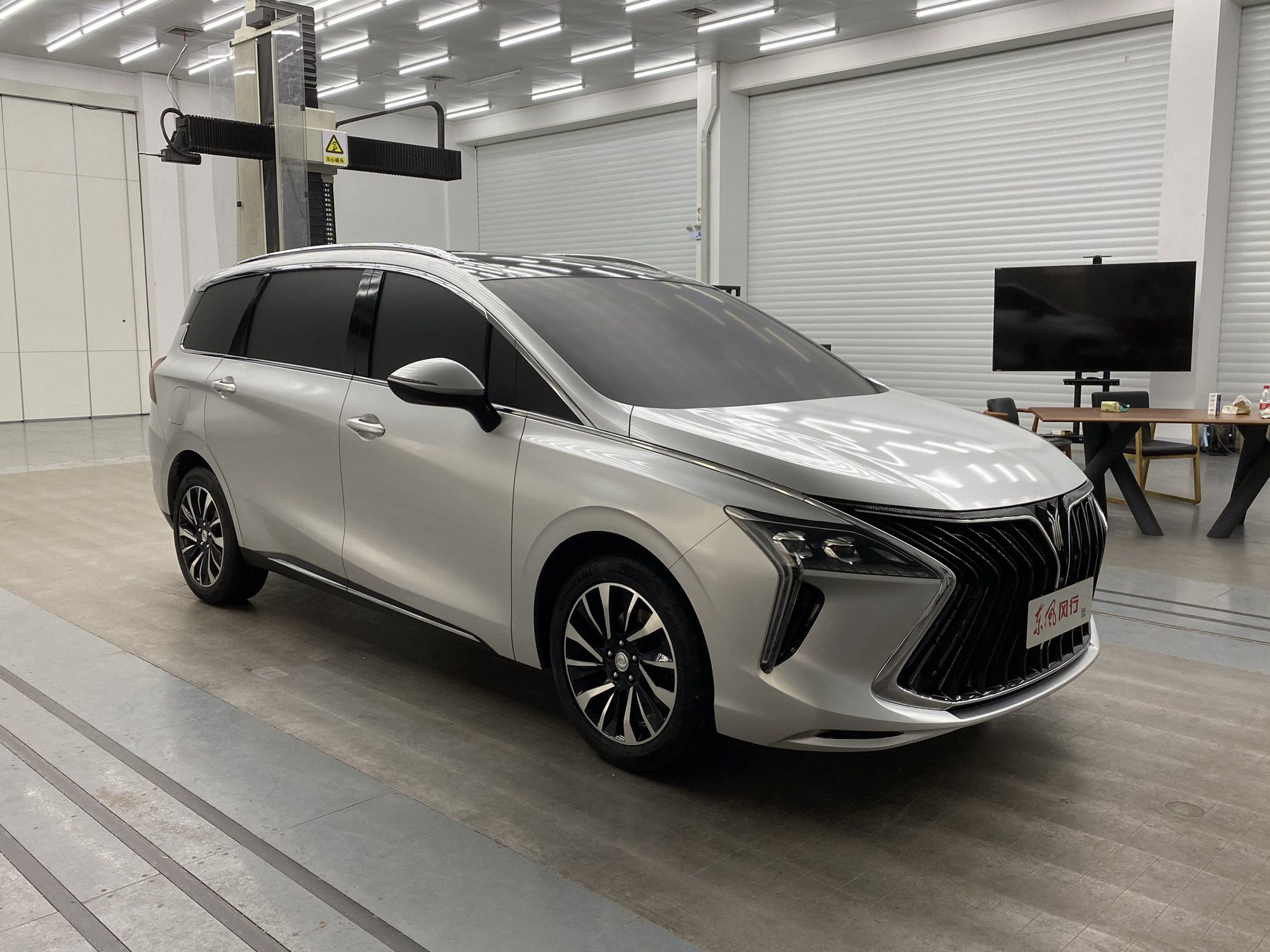

Hard model, front

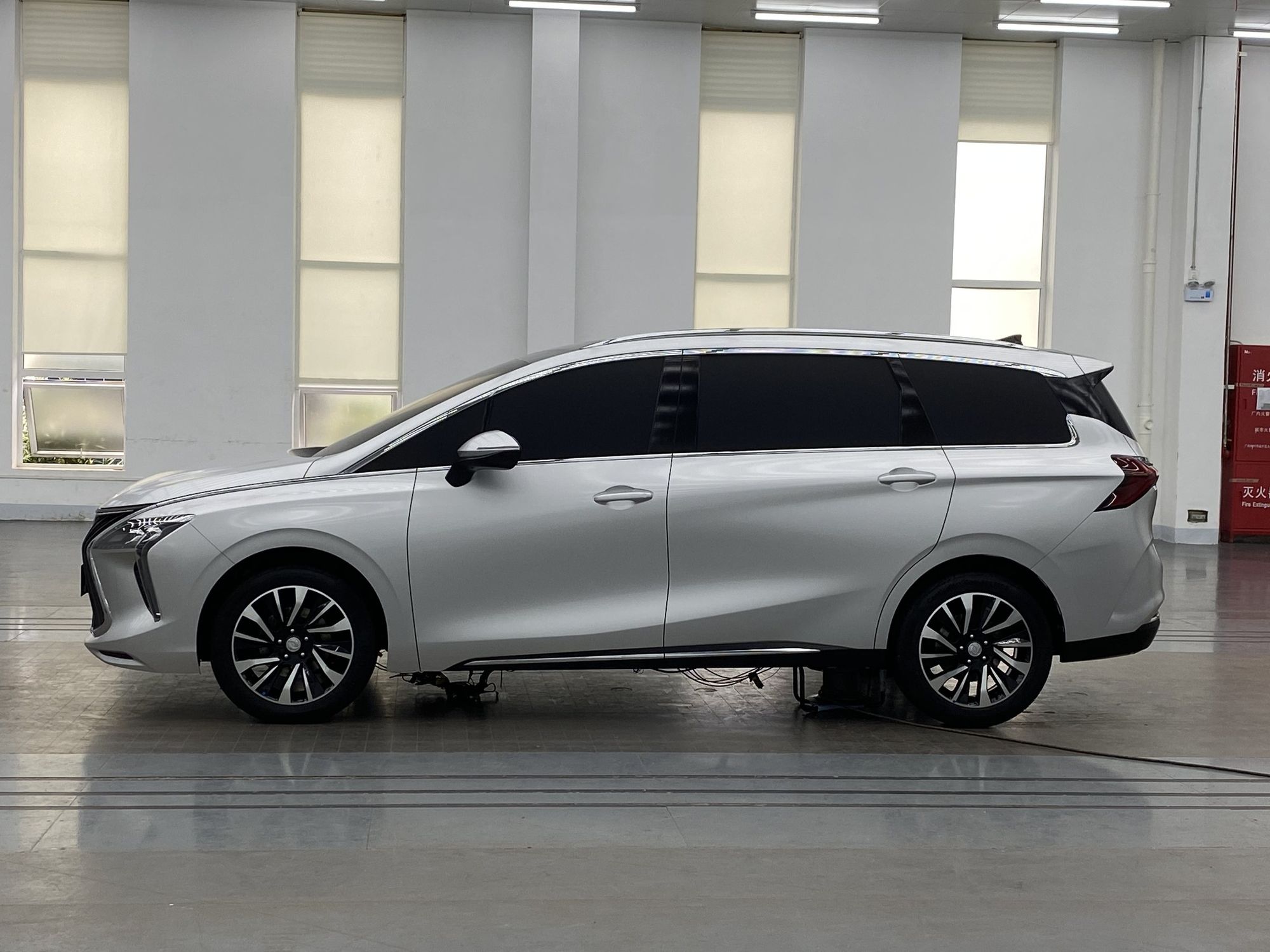

Hard model, side

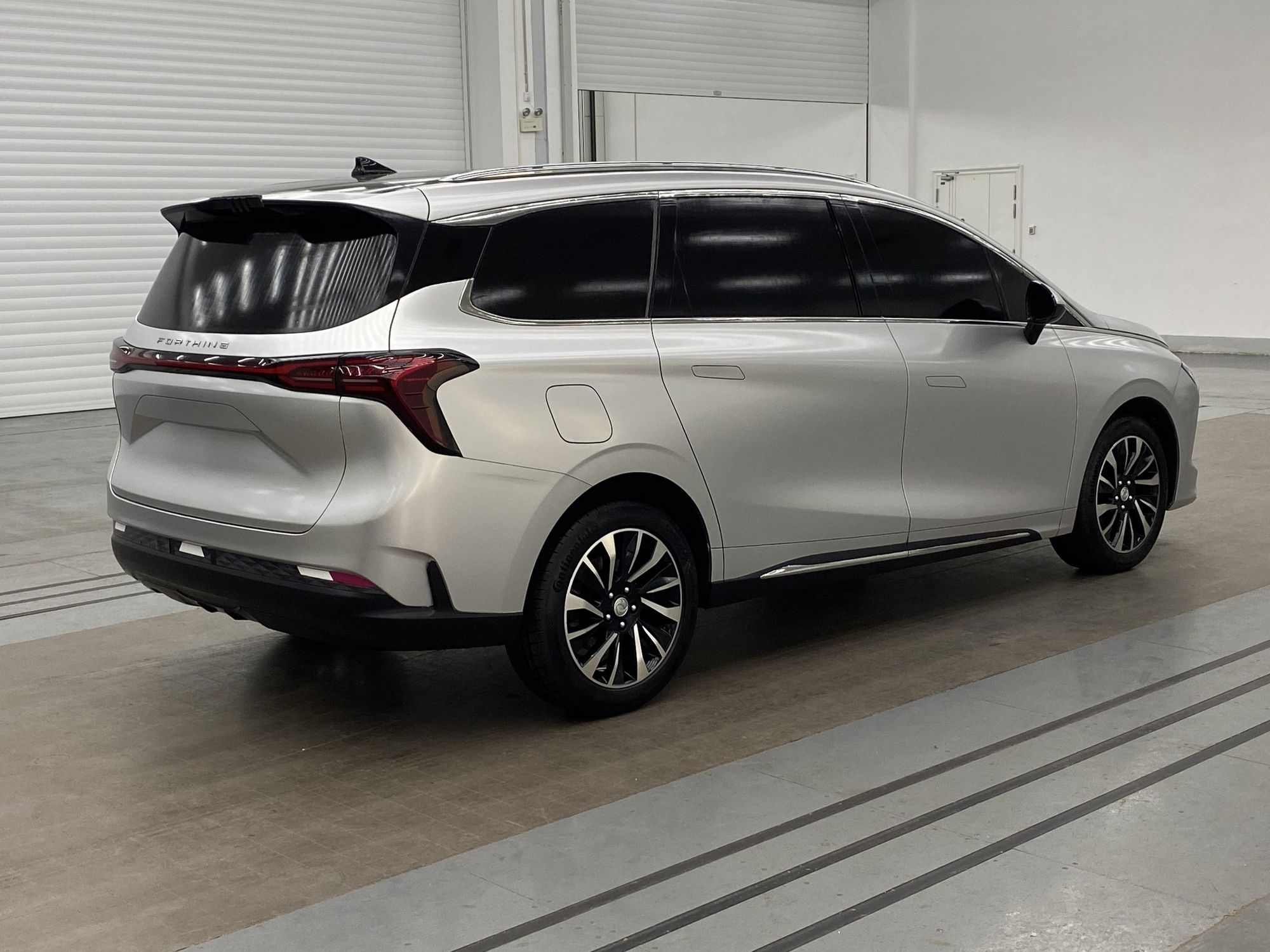

Hard model, rear
Painted model, front, side and rear.

The result

Shown as a concept at the 2021 Shanghai Auto Show. On sale in China from April 2022 as the Forthing Yacht, and exported as the Forthing U-Tour, including to Italy and Estonia.

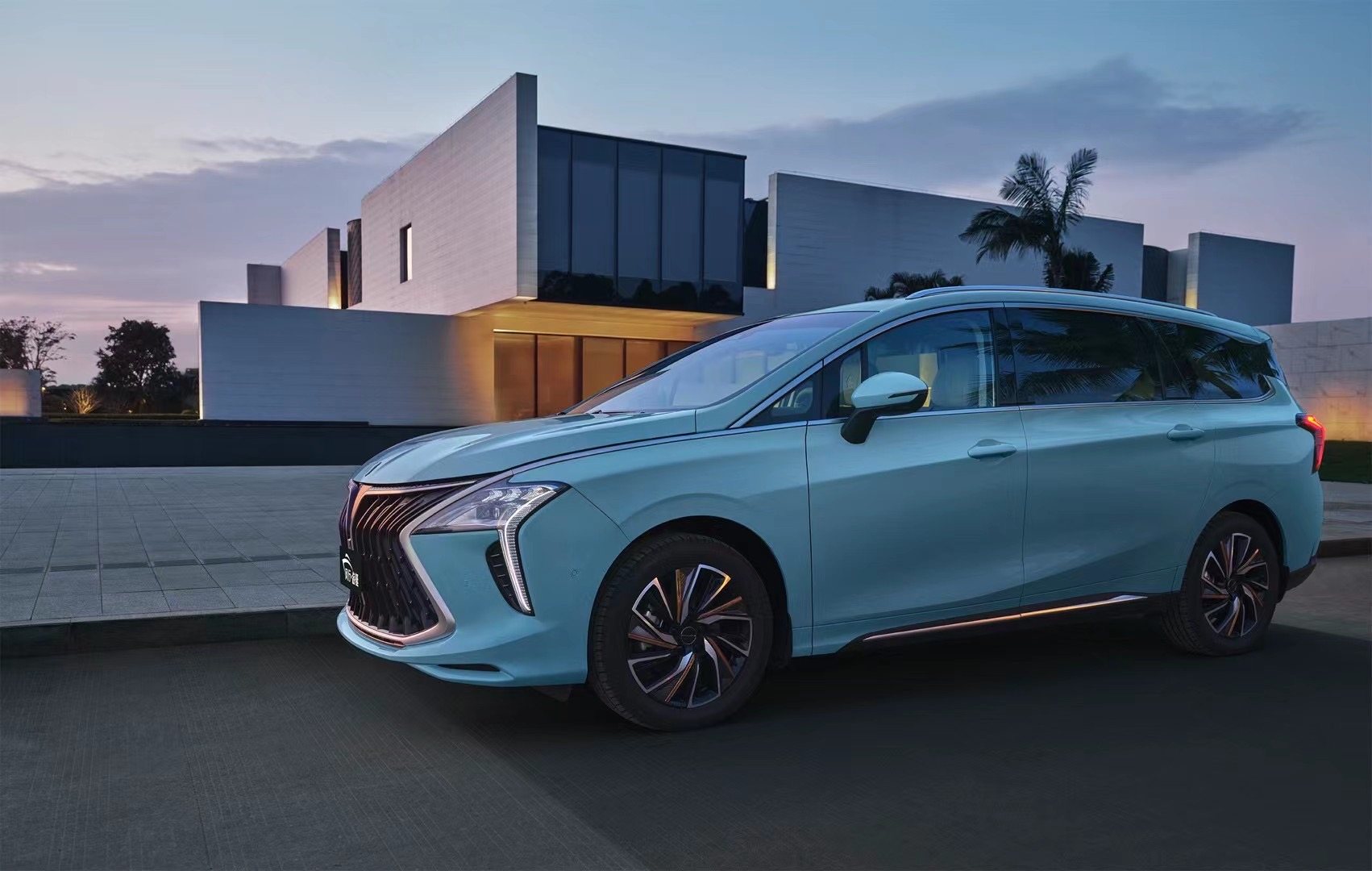

Forthing Yacht production car

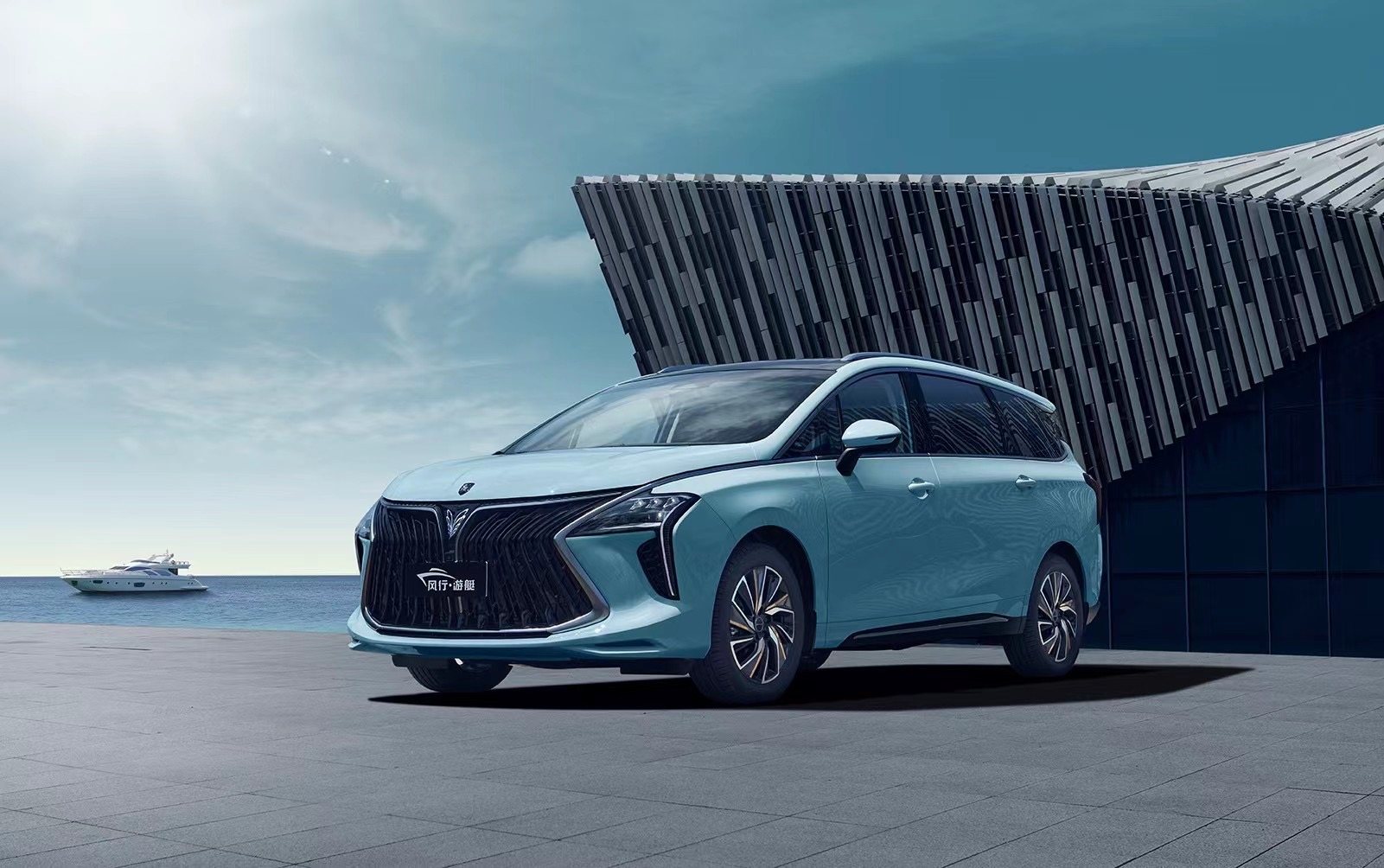

Forthing Yacht, front three-quarter

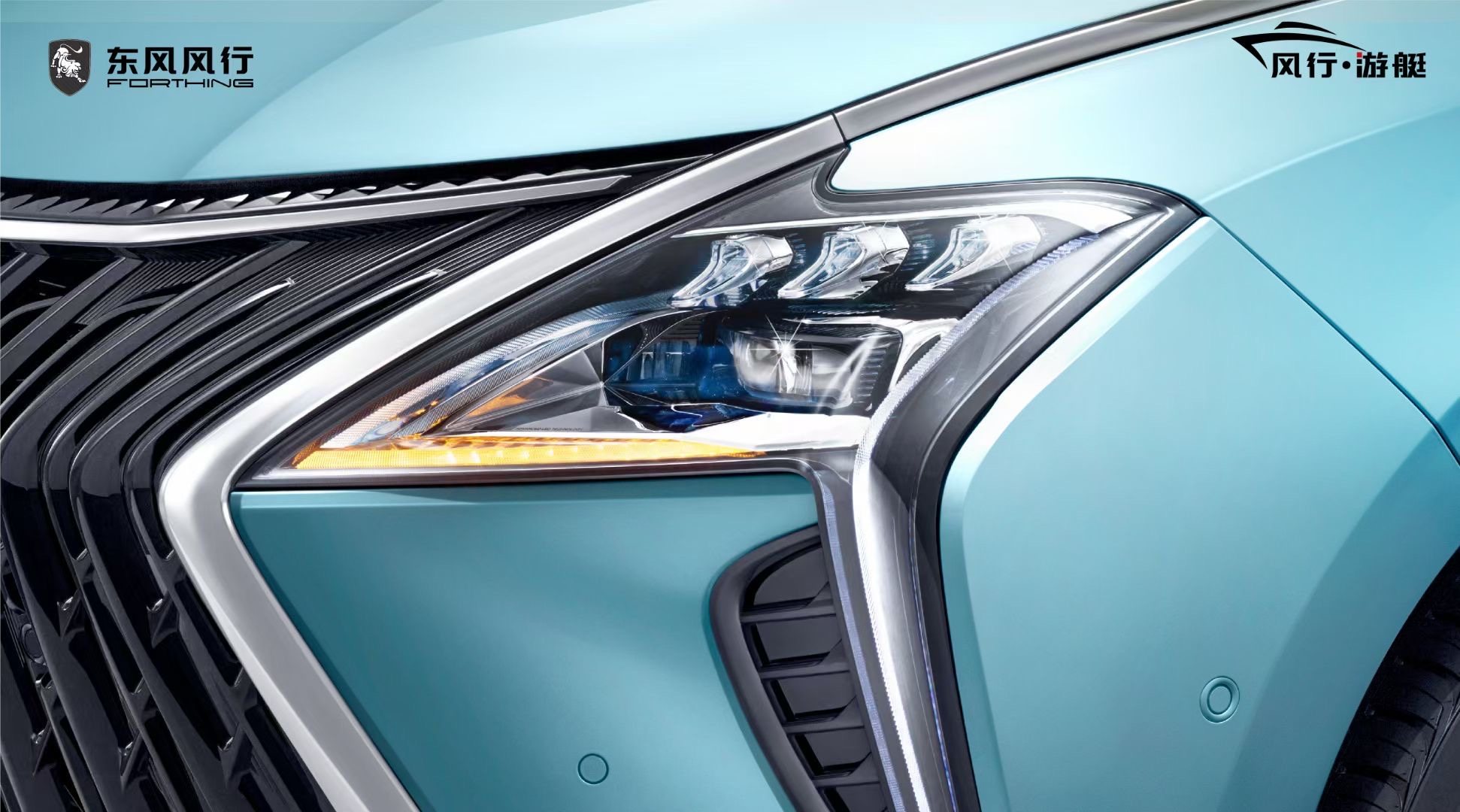

Grille and lamp detail
Forthing Yacht, production car.

Forthing V9

For the large six-seat V9 MPV I was asked for an alternative proposal and had three weeks to take it from sketch to a feasible full-size clay. The program first went on with the original design, but the production car, shown at IAA Munich in 2023 and on sale from 2024, is strongly based on my proposal. In production my diamond-collar grille was replaced by a vertical one.

Forthing V9 full-size clay proposal
Forthing V9 production car
Forthing V9: my full-size clay proposal, 2021, and the production car.
